Delta MHPP

The Delta river has a continuous flow or never dries up in the dry season and has a fairly extensive watershed with natural conditions that are still maintained. Based on observations in the field, it is known that this river has a steep slope

Capacity : 5,58 MW

Catchment area: 616 Km2

Annual rainfall: 2.016 mm

Head: 15,48 m

Design Flow: 44 m3/s

Estimated energy: 33,63 Gwh/yr

Location: Sulawesi

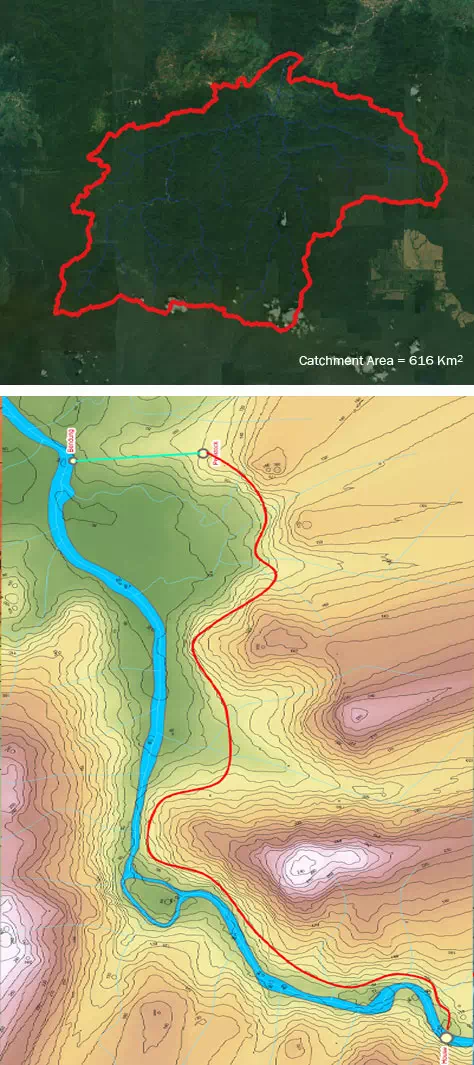

delta Hydropower plant Catchment Area .

Once in a lifetime

Hydropower Investment Opportunities

Do you want to start a great project with us ?

Developer Hydro energy Indonesia

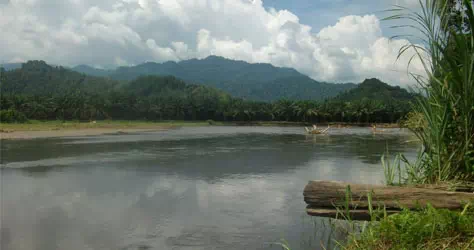

River at the weir

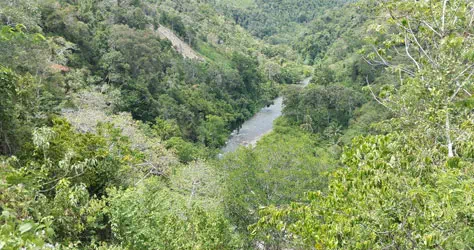

Hydro power plant location

Location and slope of the penstock

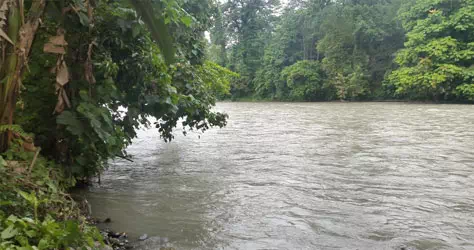

Power house location plan

River at the power house

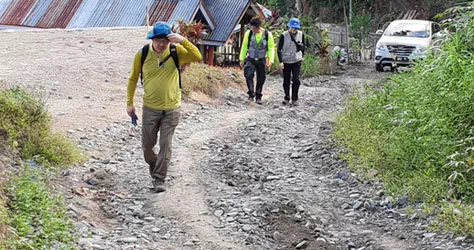

Condition of the road to the MHPP location

Access road to the MHPP location
